12 inch dividing head 250mm 4 jaw chuck universal indexing head set for cnc milling machine

The 12 Inch Dividing Head with a 250MM 4 Jaw Chuck is a crucial tool for CNC milling machines. It enables precise indexing and positioning of workpieces, significantly improving machining accuracy and efficiency. This tool is perfect for both professional machinists and hobbyists looking to enhance their CNC machining capabilities.

Introduction to the 12 Inch Dividing Head

The 12 inch dividing head is an essential component in CNC machining, designed to assist in the precise indexing and positioning of workpieces. In the realm of machining, accuracy is paramount. When working with CNC milling machines, the need for exact measurements and positioning becomes even more critical. This is where the dividing head plays a vital role. It streamlines the process of creating complex shapes and features in a workpiece, making it an indispensable tool for both professional machinists and hobbyists alike.

What is a Dividing Head?

A dividing head is a mechanical device used in conjunction with a milling machine to divide a workpiece into equal parts. It allows the operator to rotate the workpiece at specific angles, facilitating the machining of features such as holes, slots, and other intricate designs. The 12 inch dividing head, equipped with a 250MM 4 jaw chuck, is specifically designed for CNC applications, enhancing the versatility and capability of milling machines.

For What Purpose Does a Dividing Head Serve?

The primary function of a dividing head is to enable precise positioning of a workpiece. This is particularly important when machining multiple parts that require consistent dimensions. The 12 inch dividing head allows machinists to:

• Accurately index workpieces for drilling or milling operations.
• Produce evenly spaced features, such as holes or grooves.
• Facilitate the creation of complex geometries that are difficult to achieve with standard milling techniques.
• Increase the efficiency of machining processes by reducing setup times.

How Does the 12 Inch Dividing Head Work in Practice?

The operation of the 12 inch dividing head involves a few key steps:

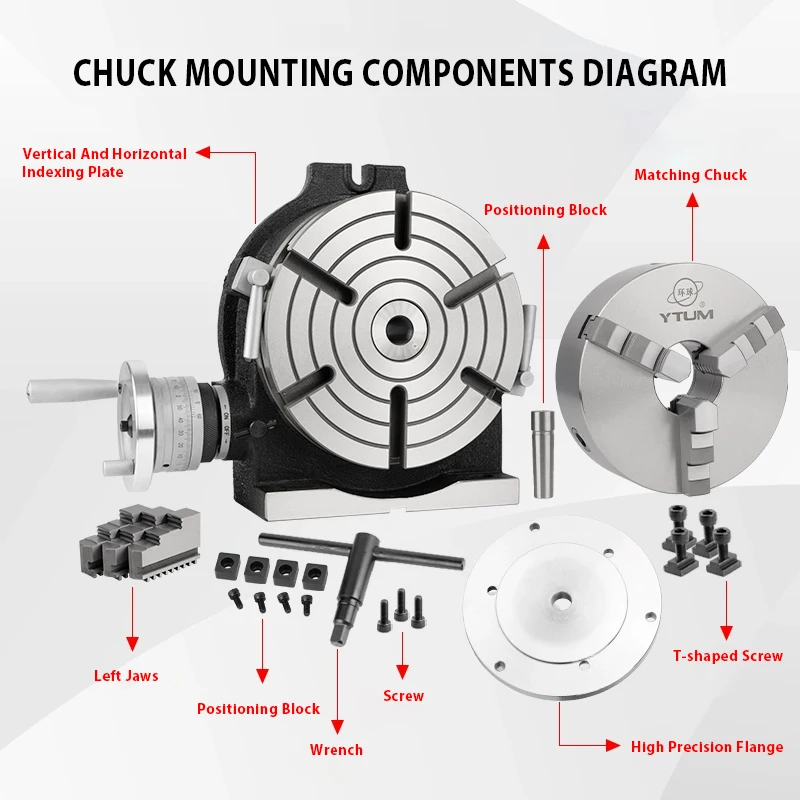

• Setup: The workpiece is securely mounted onto the 4 jaw chuck, which can accommodate various shapes and sizes.
• Indexing: The operator selects the desired angle of rotation based on the machining requirements. The dividing head is equipped with a set of gears that allow for precise adjustments.
• Machining: Once the workpiece is positioned, the milling machine is engaged to perform the necessary operations, such as drilling or milling.
• Repeat: The process can be repeated for multiple workpieces, ensuring consistency in production.

Principal Benefits of Using a Dividing Head

• Enhanced Precision: The dividing head allows for accurate workpiece positioning, improving the overall quality of machined parts.
• Increased Efficiency: By reducing setup times and allowing for multiple operations to be completed in one setup, the dividing head streamlines the machining process.
• Versatility: The ability to work with various shapes and sizes makes the dividing head a flexible tool in any machinist's arsenal.
• Complex Machining: Enables the creation of intricate designs and features that would be difficult to achieve otherwise.
• Cost-Effective: Investing in a dividing head can lead to significant time and cost savings in production.

For Whom is the 12 Inch Dividing Head Indicated?

The 12 inch dividing head is suitable for a variety of users, including:

• Professional Machinists: Those who require high precision and efficiency in their machining processes.
• Hobbyists: Individuals who enjoy CNC machining as a pastime and seek to improve their skills and outcomes.
• Manufacturers: Companies looking to enhance their production capabilities and reduce waste through improved accuracy.

Differentials and Points Worth Attention

While the 12 inch dividing head offers numerous benefits, there are a few points to consider:

• Learning Curve: For those new to CNC machining, there may be a learning curve associated with mastering the use of a dividing head.
• Maintenance: Regular maintenance is essential to ensure the longevity and accuracy of the dividing head.
• Compatibility: It’s important to ensure that the dividing head is compatible with your specific CNC milling machine.

Is It Worth It? An Analysis of the 12 Inch Dividing Head

When considering whether to invest in the 12 inch dividing head, it’s essential to evaluate your specific needs and machining goals. For professionals and serious hobbyists, this tool can significantly enhance machining capabilities, leading to improved accuracy and efficiency. However, for those who only occasionally engage in machining tasks, the investment may not yield enough return. Overall, for regular users, the benefits often outweigh the costs.

Frequently Asked Questions about the 12 Inch Dividing Head

• What is a dividing head? A dividing head is a device that allows for precise positioning of a workpiece on a milling machine, facilitating accurate machining of features.
• How does a CNC dividing head work? It operates by indexing the workpiece at specific angles, allowing for consistent and accurate machining operations.
• What are the applications of a dividing head? Dividing heads are used for drilling, milling, and creating complex shapes in various machining tasks.
• Is the 12 inch dividing head suitable for beginners? While it can be used by beginners, a foundational understanding of CNC machining is recommended for effective use.
• What are the benefits of using a dividing head? Benefits include enhanced precision, increased efficiency, versatility in machining, and the ability to create complex geometries.
• How do I maintain my dividing head? Regular maintenance includes cleaning, lubrication, and checking for wear to ensure optimal performance.

Conclusion

In summary, the 12 inch dividing head with a 250MM 4 jaw chuck is an invaluable tool for anyone involved in CNC machining. It enhances precision, improves efficiency, and allows for complex machining tasks that elevate the quality of workpieces. If you are looking to enhance your machining capabilities, consider exploring the features and benefits of the 12 inch dividing head further.
